Angle Head vs. 5-Axis Machining: Which Route to Side and Angled Features?
When do you actually need a 5-axis machine, and when will an angle head on your existing 3-axis do the same job for a fraction of the cost? A practical, honest comparison.
A cross-hole, a side pocket, a tapped face at 90° to the spindle — features like these are the classic reason shops start pricing 5-axis machines. But a 5-axis machining centre is one of the biggest capital purchases a shop makes, and for many parts an angle head on the 3-axis you already own reaches the same feature for a tiny fraction of the cost. This article compares the two honestly, so you spend on the one your parts actually need.
The same feature, two very different price tags
The core trade-off is capital. Adding an angle head means buying a tool, typically in the region of $8,000–10,000, that mounts in your existing spindle. Reaching the same feature with a new machine means buying a 5-axis machining centre — often several times the price of a comparable 3-axis VMC, before tooling, fixturing and training.

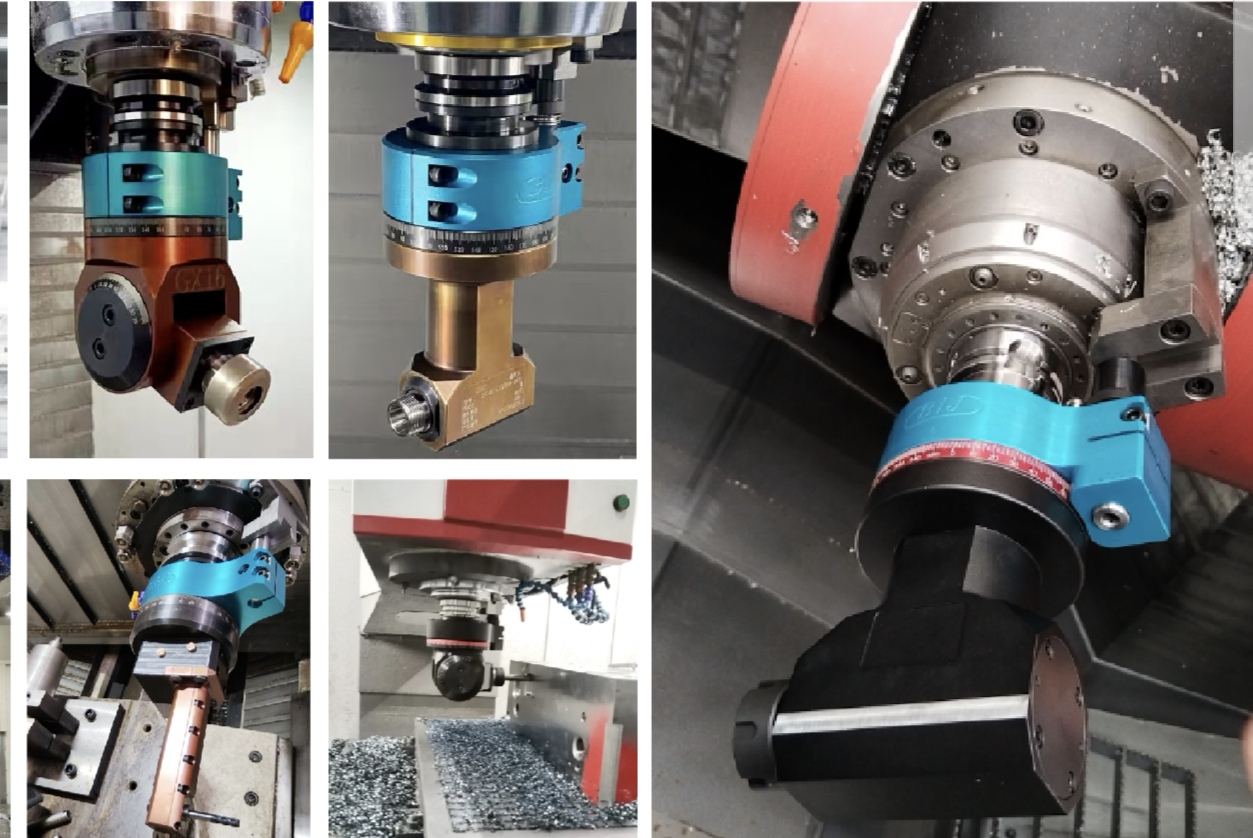

What an angle head does well
- Redirects spindle drive 90° (fixed) or 0–90° (adjustable) to reach side and cross features in one setup
- Slim, compact heads reach into narrow, deep pockets even a 5-axis head cannot clear
- Programs almost like 3-axis work — an offset, not a new CAM strategy
- Adds capability to an existing machine for a fraction of a new-machine cost
- Consolidates a second op: cross-drilling or side-milling without re-fixturing the part
What 5-axis does that an angle head cannot
- Machines compound and continuously-varying angles, not just fixed or preset ones
- Holds the highest rigidity for heavy, uninterrupted cuts
- Completes complex contoured parts (impellers, blades) in a single setup
- Pays off at volume, where cycle-time gains repeat across thousands of parts
Side by side
| Factor | Angle head on 3-axis | 5-axis machining centre |
|---|---|---|
| Capital to add capability | ≈ $8,000–10,000 tool | New machine — often 3–5× a 3-axis VMC |
| Programming | Simple — like 3-axis plus an offset | 3+2 indexed or full simultaneous |
| Reach into narrow/deep spaces | Excellent — slim heads made for it | Limited by head and table clearance |
| Rigidity for heavy cuts | Good (fixed 90°) to moderate (adjustable) | High |
| Compound / continuous angles | Fixed or preset angles only | Any angle, simultaneous |
| Best for | Cross-holes, side pockets, occasional angled ops | Complex contours, high volume, many compound angles |
How to choose: a quick decision path
Specifying an angle head so it actually fits your job
- 1Match the shank to your spindle taper — BT30 / BT40 / BT50, or HSK / CAT.
- 2Choose fixed 90° for maximum rigidity, or adjustable 0–90° for varied angles.
- 3Size the collet (ER8–ER32) or side-lock to the cutter and torque you need.
- 4Confirm through-coolant if you are drilling or side-milling deep.
- 5Check the working reach and any anti-rotation block against your fixture.
Is an angle head cheaper than buying a 5-axis machine?+
Can an angle head reach features a 5-axis machine cannot?+
Does an angle head reduce rigidity or accuracy?+
When is 5-axis clearly the better choice?+
What spindle interfaces do angle heads support?+
