Zero-Point Positioning Systems

Illustrative configuration · Zero-point chucks, a common base plate and a removable pallet shown as one system concept.Illustrative configuration

Illustrative configuration · Zero-point chucks, a common base plate and a removable pallet shown as one system concept.

Overview

Our zero-point positioning systems let machining, EDM, measuring and assembly stations share a common reference. The range includes positioning chucks, receiver plates, pallets and pull studs. Changeover sequence and repeat positioning performance depend on the selected locator, pallet interface, installation and test method; share your machine details and acceptance criteria for an engineering review.

Key Features

  • Repeat positioning performance specified for the selected locator, interface and test conditions
  • Release method selected for the system design and operating sequence
  • Clamping and pull-down capacity confirmed for the selected model and load case
  • Modular base plates, chucks and pull studs

Product Range

  • Zero-point positioning base plate
  • Zero-point positioning chuck

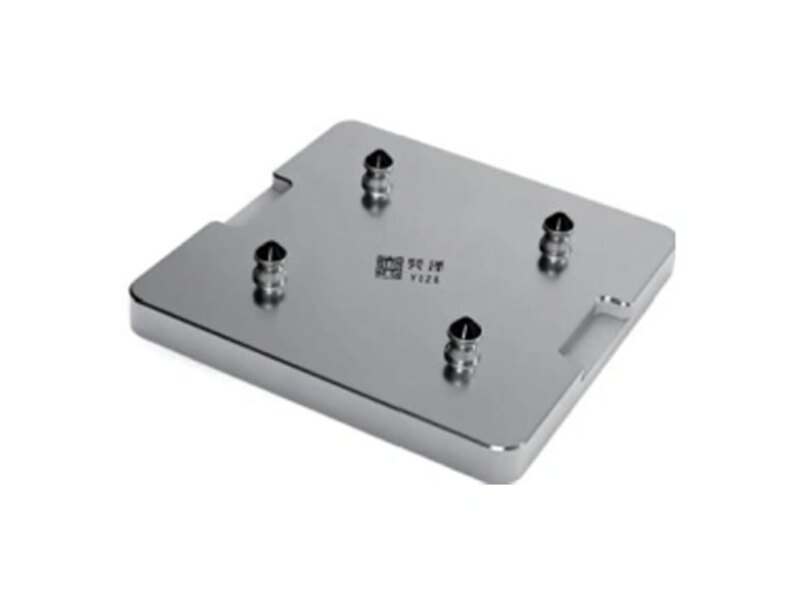

  • Zero-point positioning tray / pallet
  • Pull studs & clamping bolts
  • Modular fixture series

Guide: Zero-Point Positioning Systems: The Complete Guide (2026)

Factory-engineered product range

Product types and configurable specifications

These product families are developed and manufactured around the part and process. Share your drawing and operating conditions to confirm the final dimensions, capacity, interfaces and acceptance criteria for the specific project.

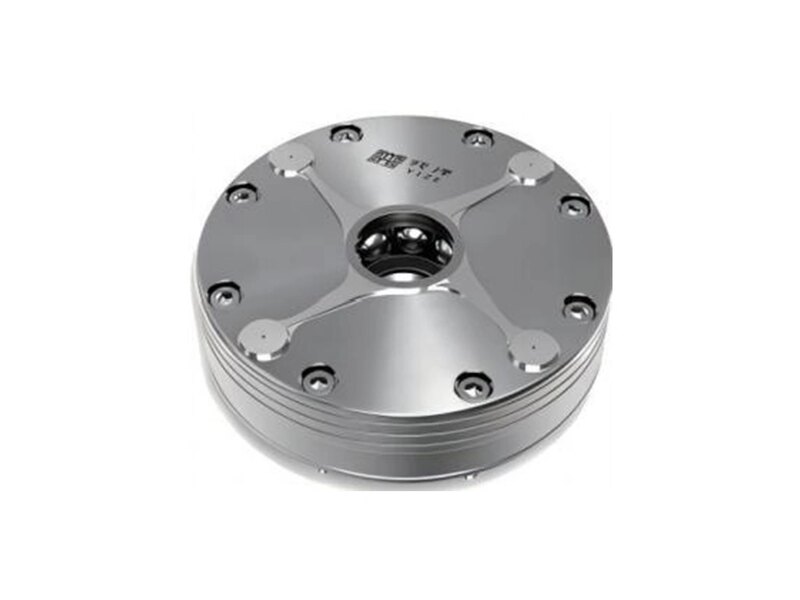

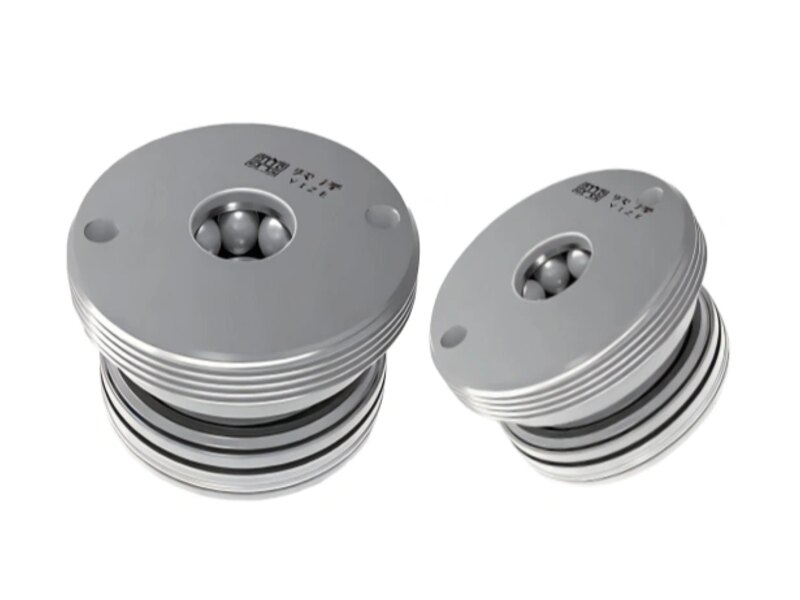

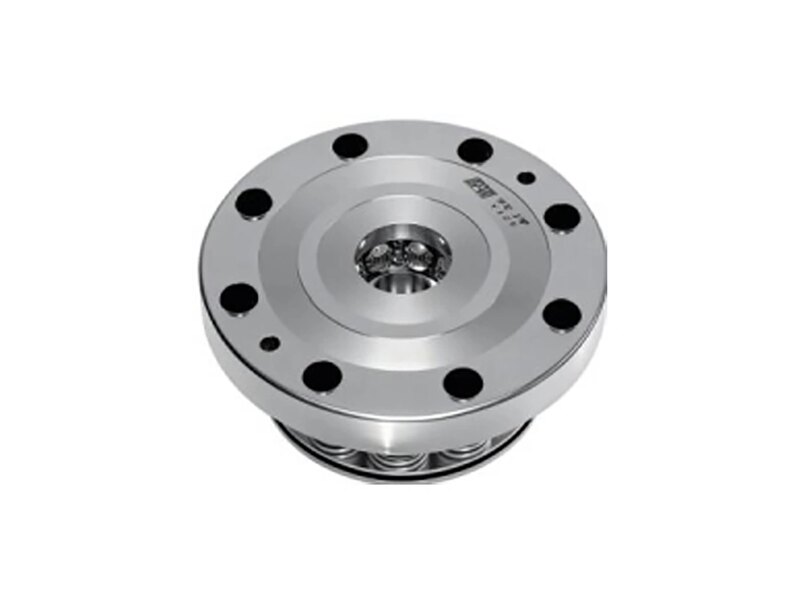

Zero-Point Chucks & Locating Units

Machine-side locating and clamping units for repeatable fixture or pallet changeovers. The interface and release method are selected to suit the machine, operating sequence and required acceptance checks.

Configuration reviewed for each project

  • Machine table, pallet-changer or rotary-table interface
  • Single or multiple locating positions and layout
  • Mechanical or engineered pneumatic / hydraulic release, where applicable
  • Required clamping state, load case and safety conditions
  • Repeatability target and agreed verification method
Request an engineering review

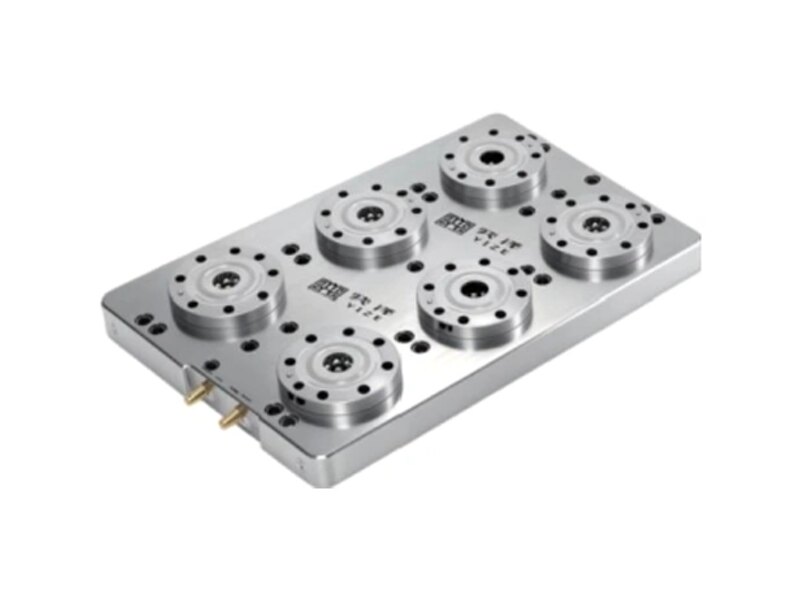

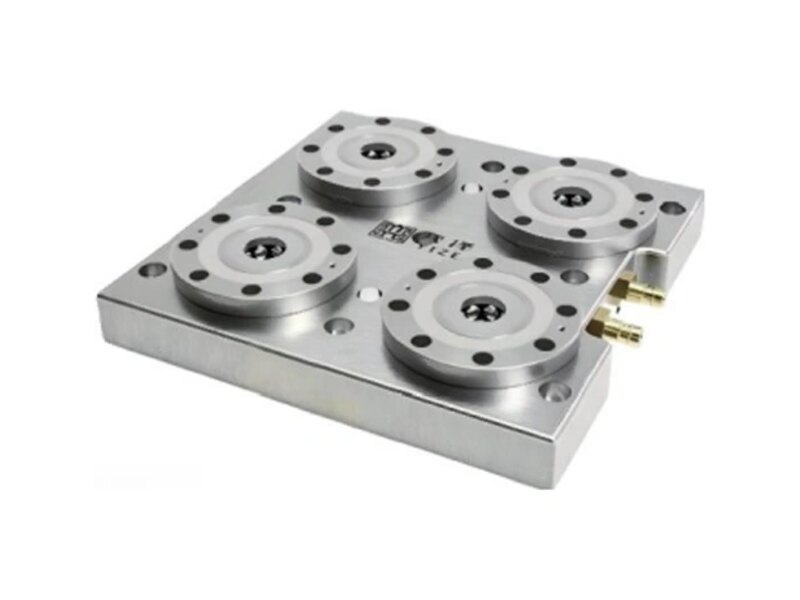

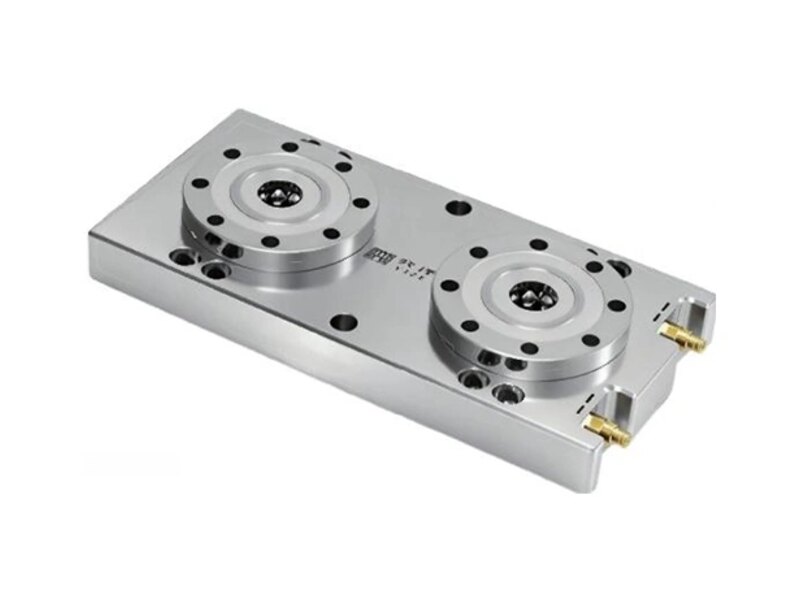

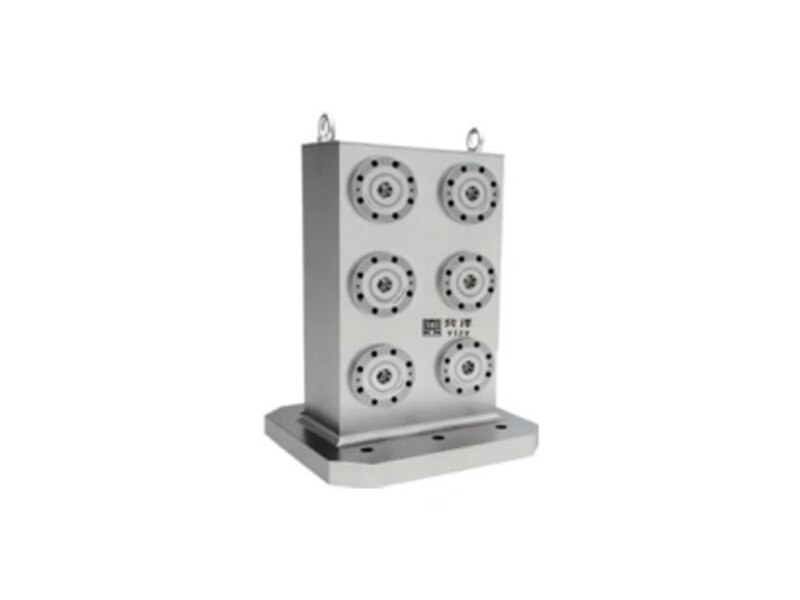

Zero-Point Base Plates & Receiver Plates

Single, multi-position and modular plate arrangements that connect the machine table or tombstone to a prepared fixture. Mounting and alignment details are reviewed against the actual table or pallet drawing.

Configuration reviewed for each project

  • Plate outline, thickness envelope and station spacing
  • T-slot, threaded-hole, keyway or adapter mounting details

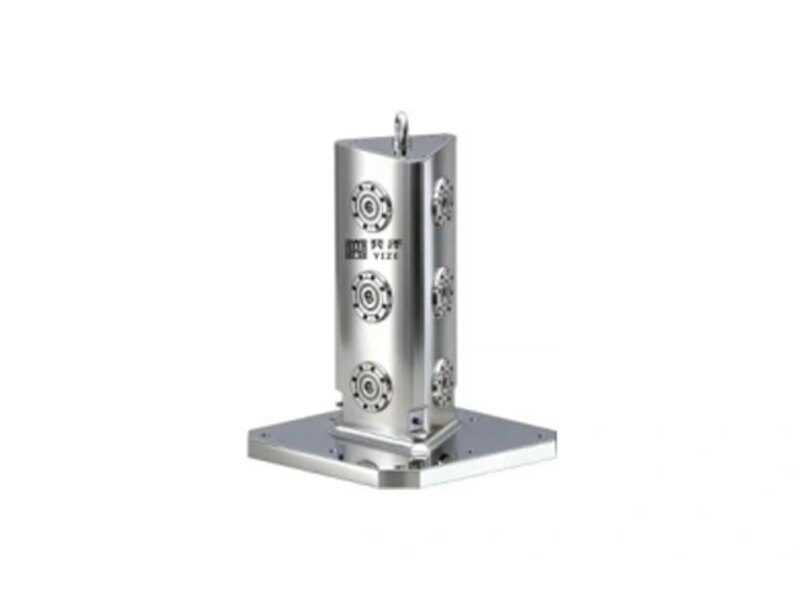

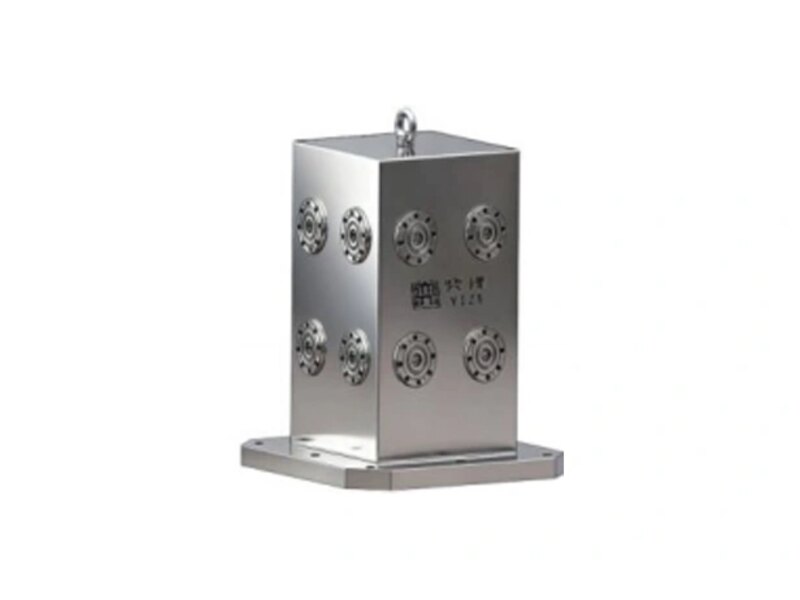

  • Machine, tombstone, trunnion or automation-pallet fit
  • Coolant / chip exposure and access for cleaning
  • Material, finish and project-specific inspection requirements
Request an engineering review

Pallet Interfaces, Pull Studs & Fixture Adapters

Workholding-side components connect a vise, fixture or pallet to the selected zero-point receiver. Interface compatibility must be checked as a system; pull studs and locating patterns are not assumed to be interchangeable across standards.

Configuration reviewed for each project

  • Existing receiver / pull-stud family and interface drawing
  • Pallet or fixture footprint, locating pattern and quantity
  • Fixture mass, workpiece envelope and operating load case
  • Manual loading, pallet exchange or automation sequence
  • Required drawing, sample or first-article acceptance evidence
Request an engineering review

Start with the engineering inputs

Request a machine-and-part review. A useful review is based on the operating context, not assumptions made from a catalogue name alone.

  • machine table interface
  • required pull-down force
  • repeatability requirement
  • pallet count and changeover target

See it in action

Checking repeatability on a zero-point base plate — a dial indicator confirms the pallet returns to the same origin after re-clamping.
A vertical machining centre in cut — the kind of precision machining our workholding is built for.

Specifications

ParameterValue
Repeat positioning accuracyAgreed and verified for the selected configuration
Pull-down forceConfirmed for the selected locator and load case
Clamping / holding forceConfirmed for the selected configuration
UnlockingMechanical / pneumatic / hydraulic, subject to design review
LockingConfirmed for the selected system architecture
Interface gridMatched to the machine-table or pallet drawing
Body materialSelected for the application and operating environment
SealingReviewed against chip, coolant and cleaning conditions
Repeatability (model-specific)Confirm for selected configuration

Specifications are indicative — contact us for the full datasheet and application-specific configurations.

Locating Pins & Pull-Stud Accessories

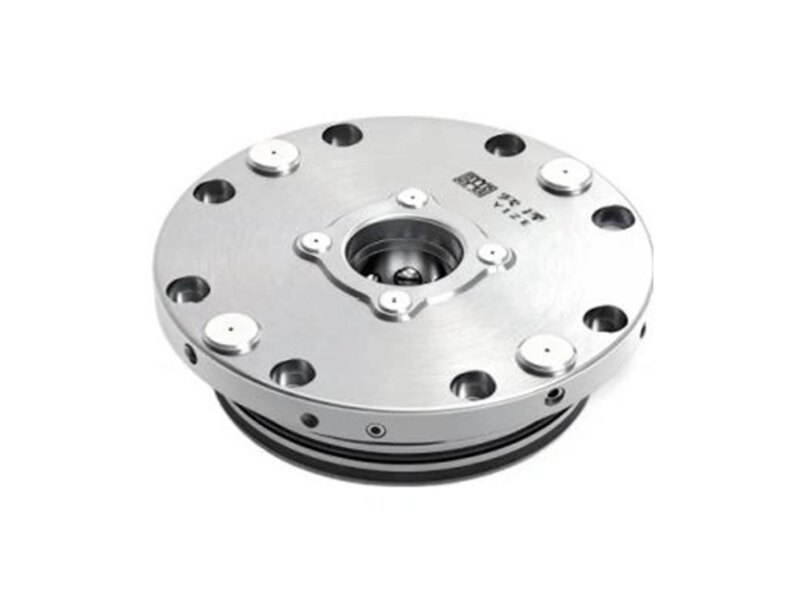

Automated pneumatic pallet-lifting chucks are paired with a range of locating pins and pull studs. Select by series and pin type to match your pallet and datum layout.

Zero-Point Positioning Systems accessory family — PY-DW

PY-DW locating-pin family

Model options:

  • PY-DW-20D · 20D standard
  • PY-DW-10D/40D · 10D / 40D
Zero-Point Positioning Systems accessory family — PY-DX

PY-DX locating-pin family

Model options:

  • PY-DX-20D · 20D standard
  • PY-DX-10D/40D · 10D / 40D
Zero-Point Positioning Systems accessory family — PY-SJ

PY-SJ locating-pin family

Model options:

  • PY-SJ-20D · 20D standard
  • PY-SJ-10D/40D · 10D / 40D
Zero-Point Positioning Systems accessory family — PY-BH

PY-BH locating-pin family

Model options:

  • PY-BH-20 · 20D standard
  • PY-BH-10D/40D · 10D / 40D
