Angle Head Milling Cutters

Illustrative configuration · A right-angle spindle attachment shown milling a side feature; confirm machine and tool compatibility during review.Illustrative configuration

Illustrative configuration · A right-angle spindle attachment shown milling a side feature; confirm machine and tool compatibility during review.

Overview

Angle head milling cutters redirect spindle drive to reach features that a vertical spindle cannot — deep pockets, side bores and cross holes — in a single setup. Precision bearings and hardened gears deliver rigid, low-runout cutting for milling, drilling and tapping.

Key Features

  • 90° fixed and 0–90° adjustable output
  • Low runout, high torque transmission
  • BT / HSK / CAT and custom shanks
  • Internal / external coolant options

Product Range

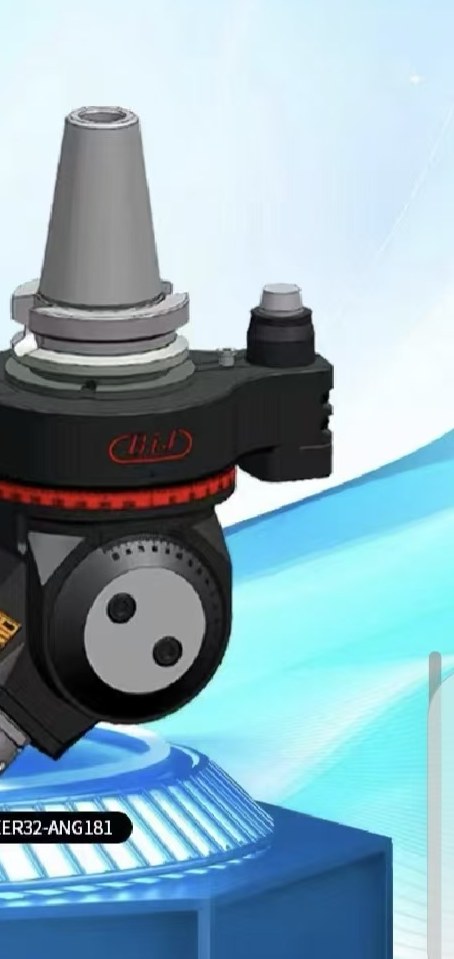

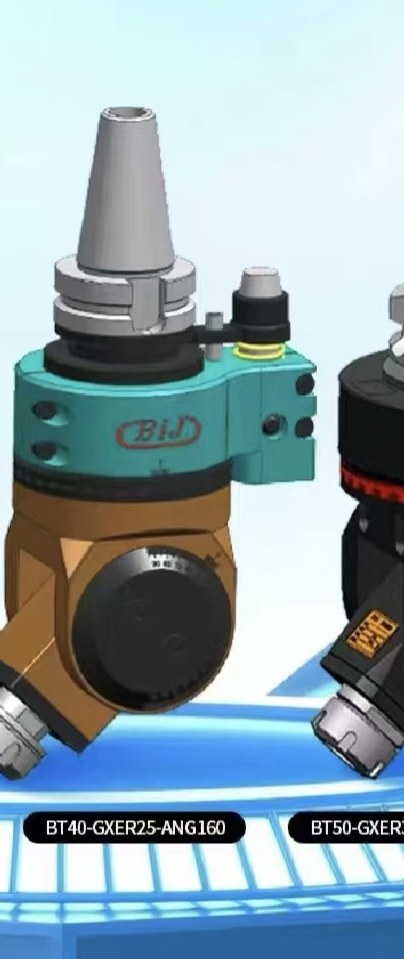

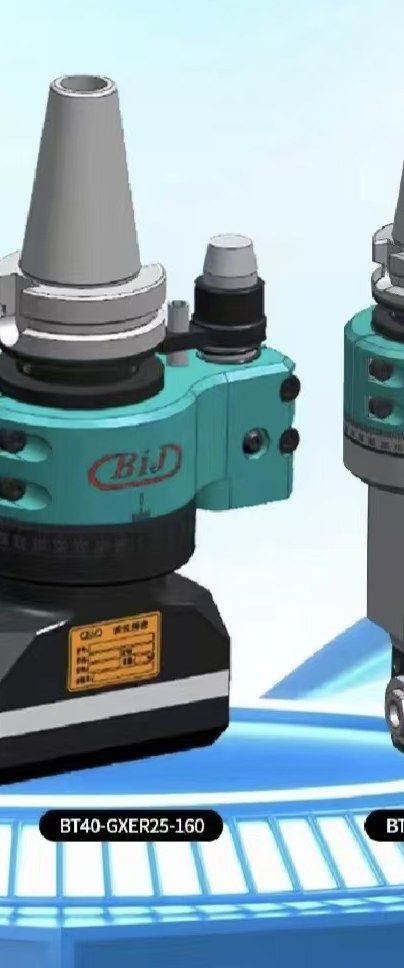

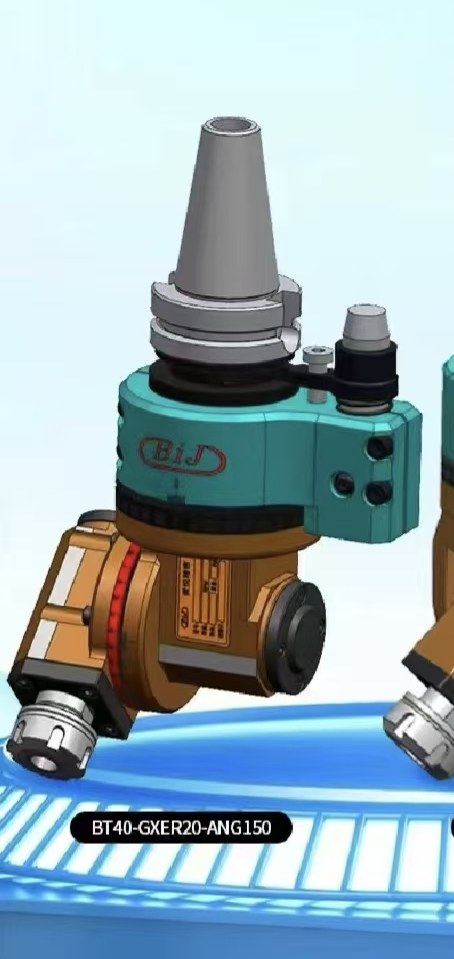

  • 90° angle heads (GXER · ANG series)

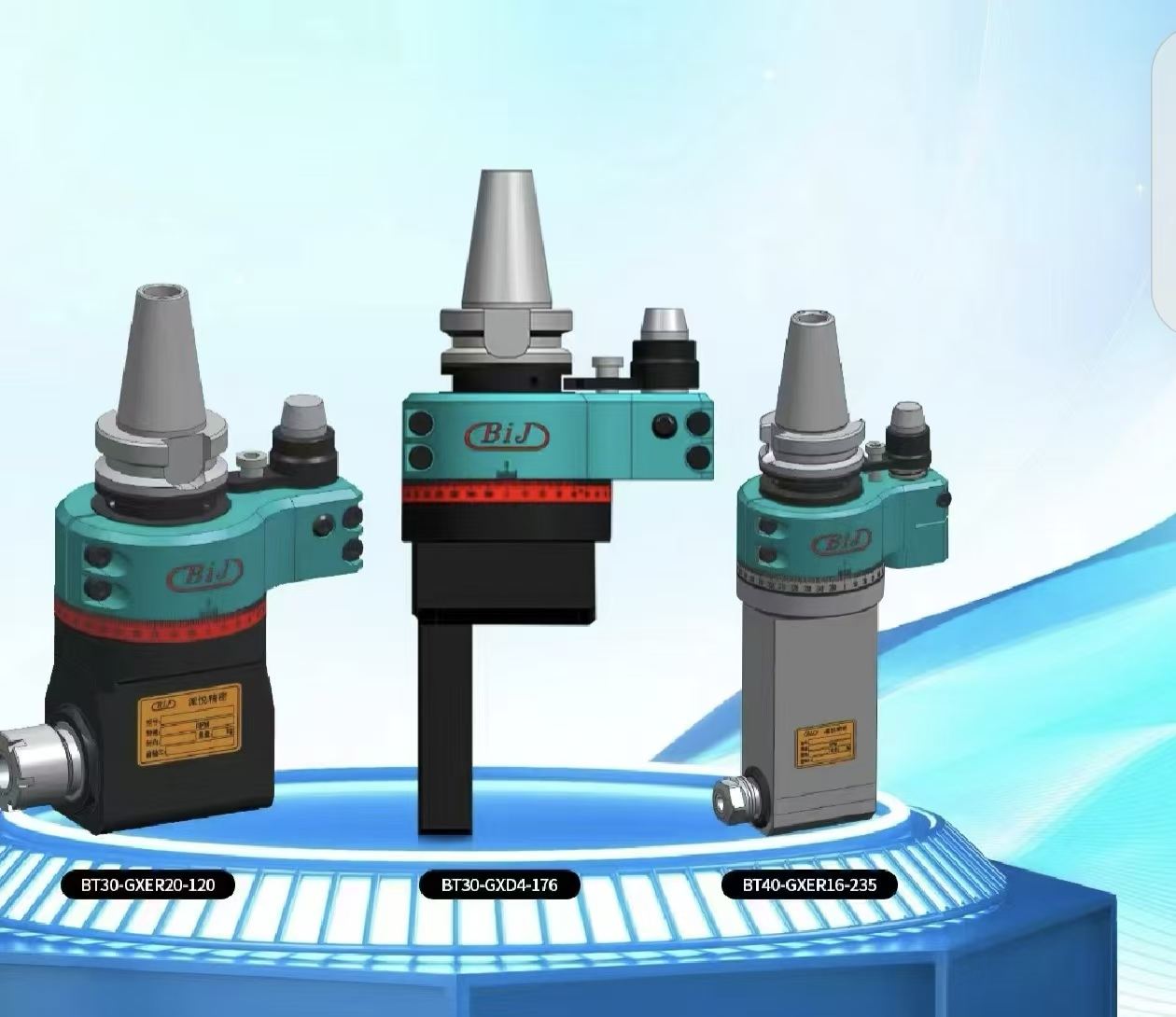

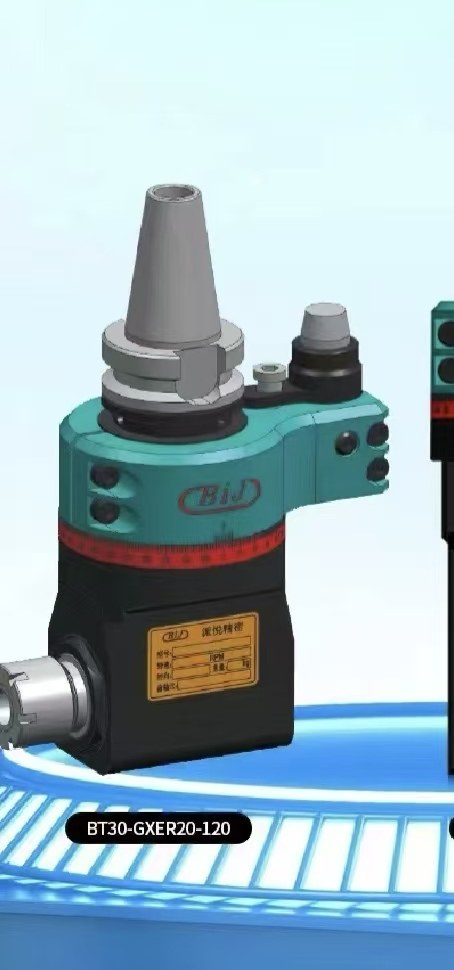

  • Adjustable angle heads (graduated dial)

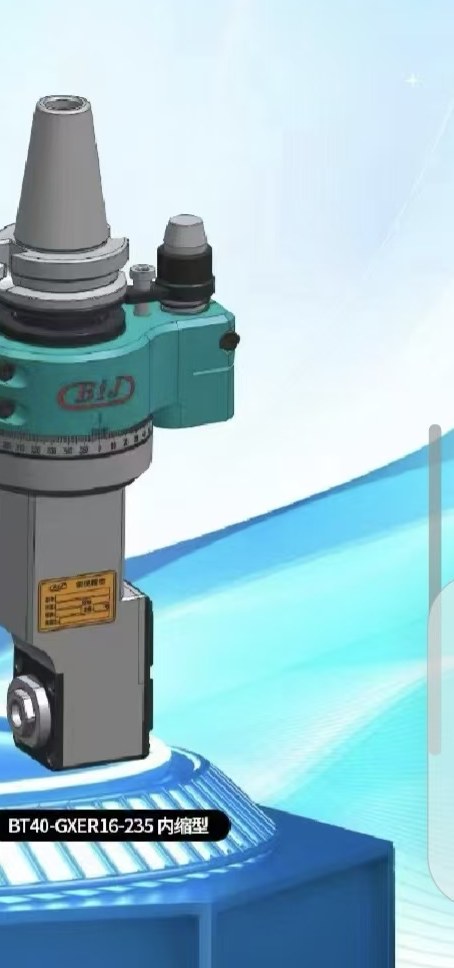

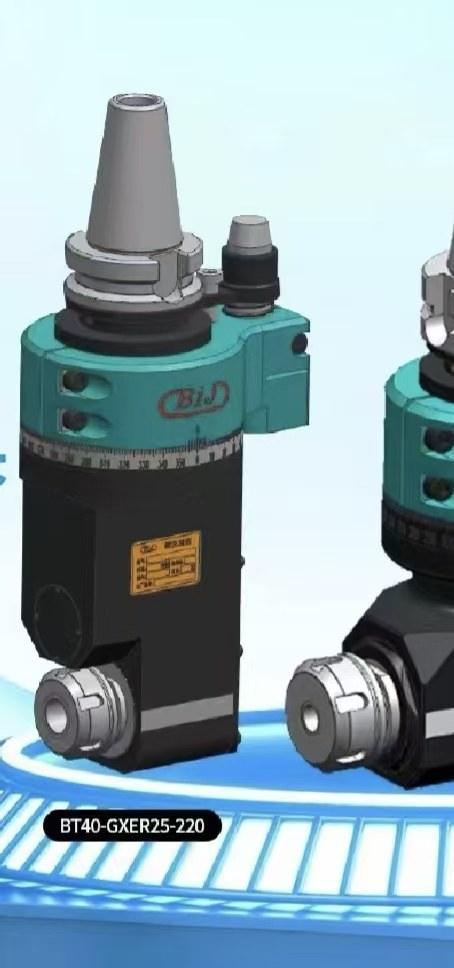

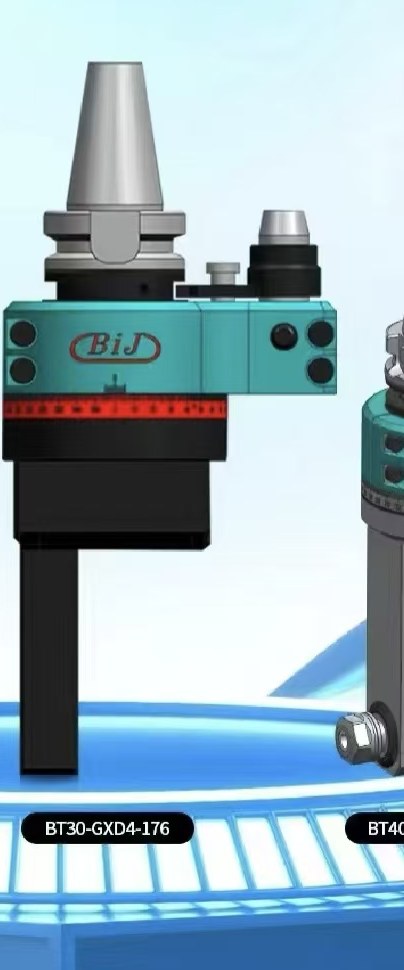

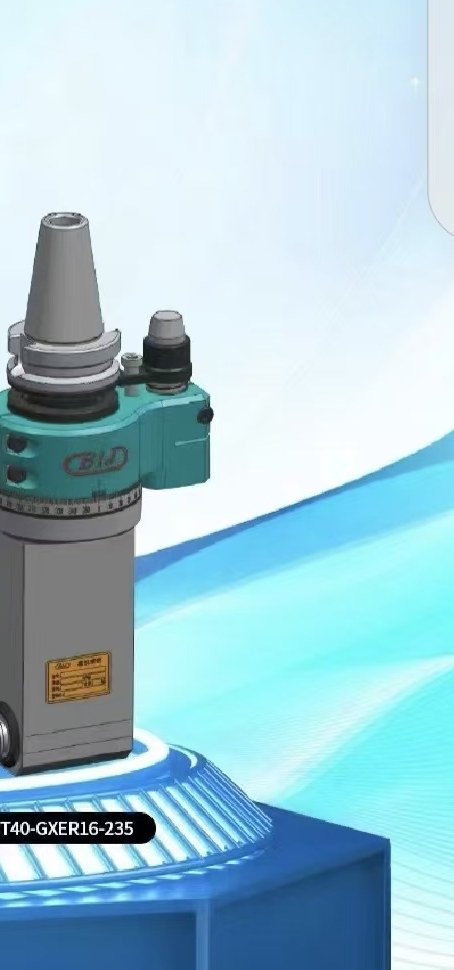

  • Extended & slim reach angle heads

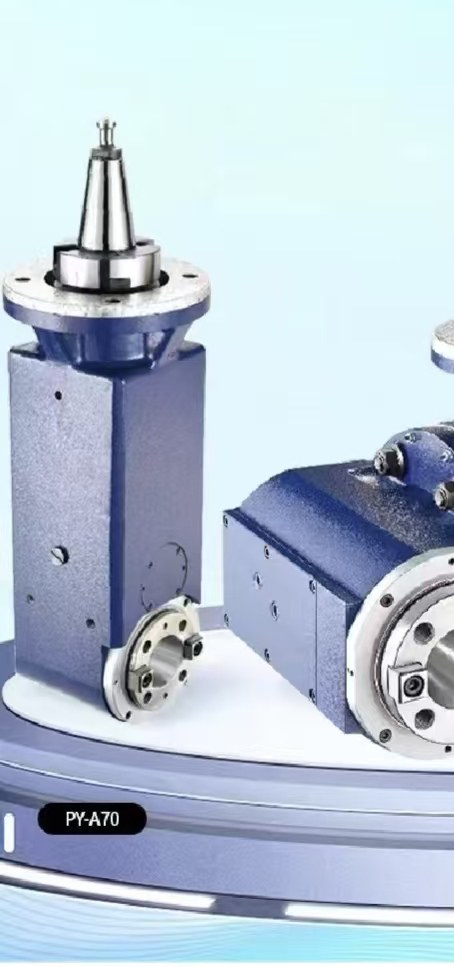

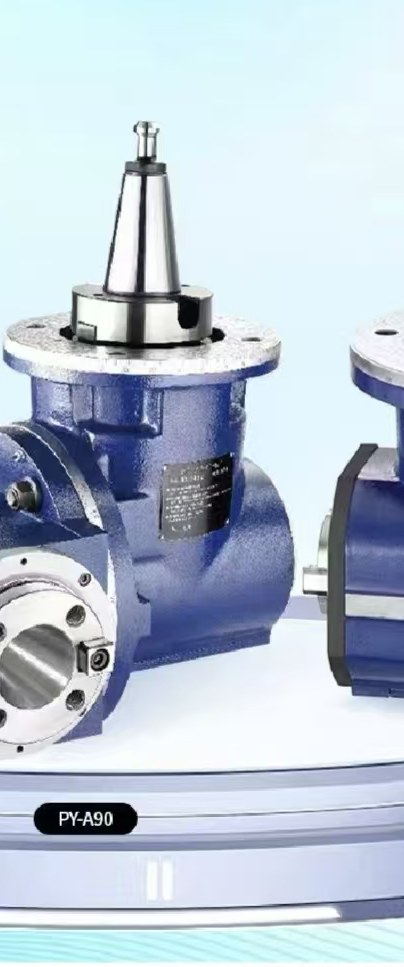

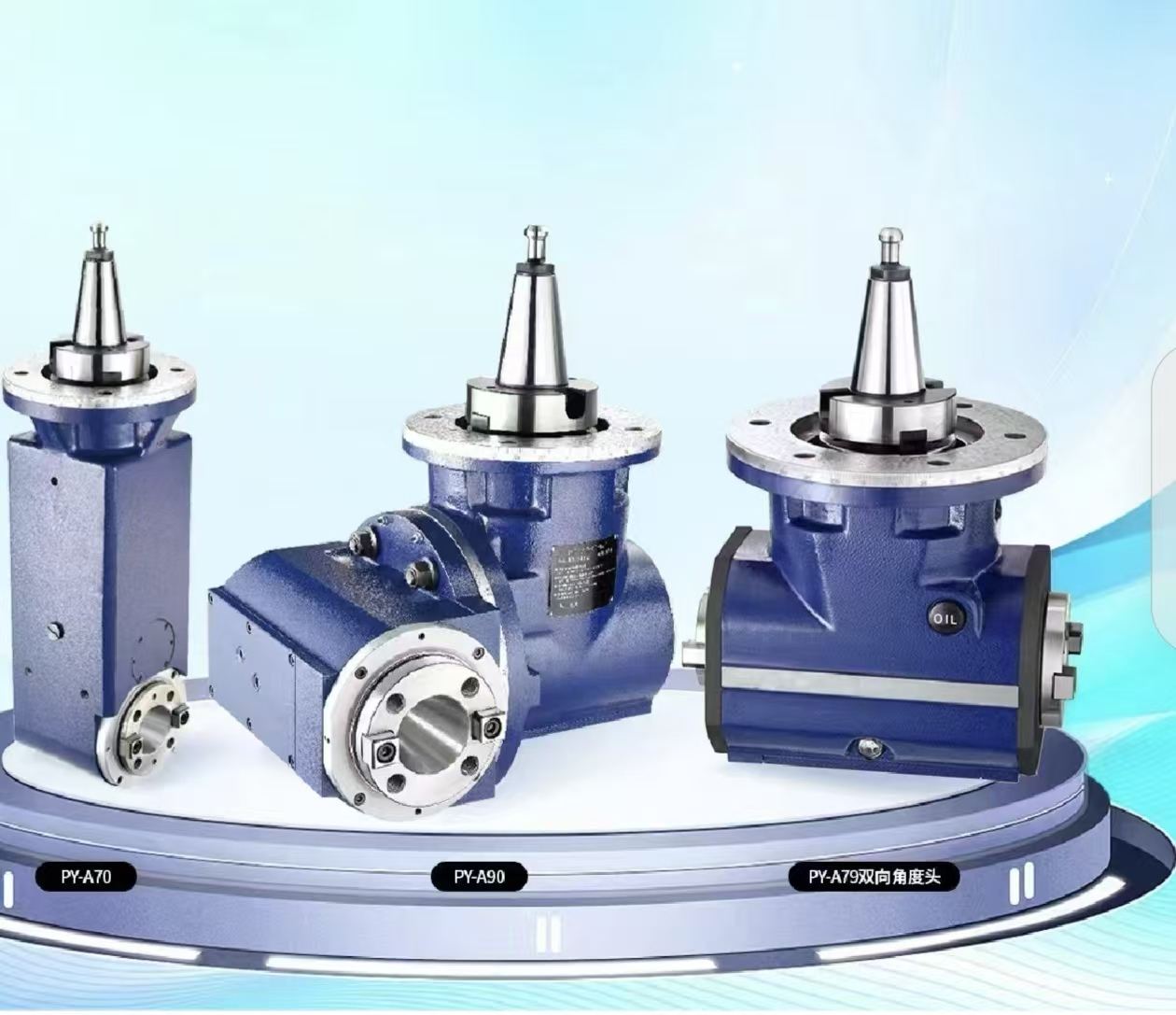

  • Universal cast-body angle heads (PY-A)

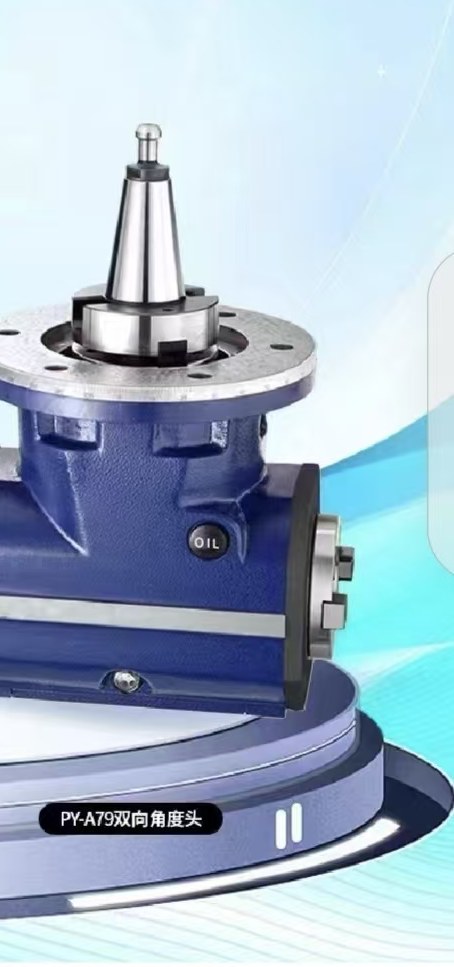

  • Bi-directional & custom angle heads

Guide: Angle Head Milling Cutters: How to Choose and Use Them (2026)

Factory-engineered product range

Product types and configurable specifications

These product families are developed and manufactured around the part and process. Share your drawing and operating conditions to confirm the final dimensions, capacity, interfaces and acceptance criteria for the specific project.

Fixed 90° angle heads

Right-angle heads for side milling, drilling and tapping where the machine spindle cannot directly reach the feature. Select the head and tool interface around the spindle, cutting load and available clearance.

Configuration reviewed for each project

  • Spindle taper and drawbar / retention interface
  • Required speed, torque and cutting operation
  • Output holder type and tool diameter / reach
  • Housing envelope, stop-block position and collision clearance
  • Coolant route, spindle rotation and required documentation
Request an engineering review

Adjustable and universal angle heads

Angular-positioning options for machining features at selected orientations. The required angle range, indexing method and available machine space are reviewed with the part geometry and operation sequence.

Configuration reviewed for each project

  • Required working angle and adjustment / indexing method
  • Spindle taper, output collet and tool specification
  • Cutting speed, torque and tapping requirements
  • Head body size, tool reach and workpiece clearance
  • Coolant method and machine-side anti-rotation support
Request an engineering review

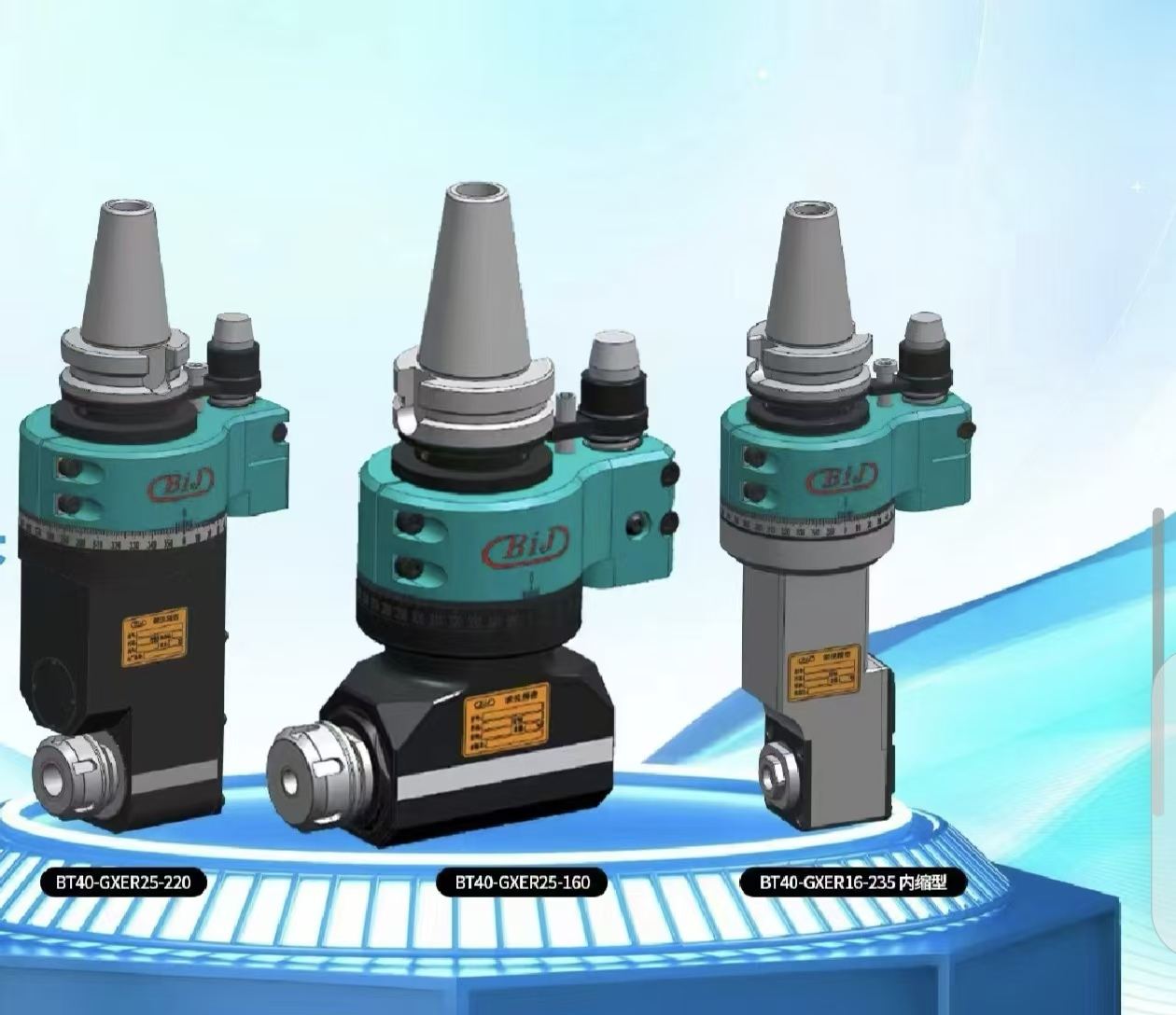

Extended-reach, slim and heavy-duty side-milling heads

Reach-focused and higher-capacity configurations for deep pockets, cross holes or larger side-milling tools. Final selection is tied to the machine interface, tool projection and the operation's load and speed window.

Configuration reviewed for each project

  • Reach length, neck diameter and access path
  • Tool diameter, holder, projection and workpiece material
  • Spindle speed, output torque and power demand
  • Internal / external coolant and chip evacuation
  • Machine taper, stop block and permissible envelope
Request an engineering review

Start with the engineering inputs

Review spindle, tool path and required torque. A useful review is based on the operating context, not assumptions made from a catalogue name alone.

  • spindle taper
  • available clearance
  • torque and speed
  • coolant and stop-block interface

See it in action

A lineup of angle head milling cutters — fixed and adjustable heads with BT shanks and ER collets.

Specifications

ParameterValue
Output direction90° fixed / 0 – 90° adjustable
Shank interfaceBT30 / BT40 / BT50 / HSK / CAT
Tool clampingER8 – ER32 collet / side-lock
Max spindle speedup to 5,000 RPM
Gear ratio1:1
Runout≤ 0.01 mm
CoolantInternal / external
TransmissionHardened & ground gears, imported bearings
Working reach120 – 235 mm

Specifications are indicative — contact us for the full datasheet and application-specific configurations.
